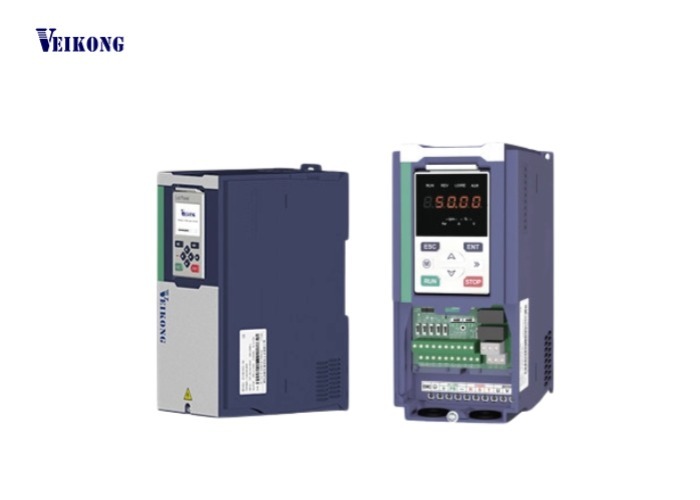

VFD530: High breakaway torque, high-frequency operation, and extensive communication protocols

VFD530 features:

1, With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card

2, Up to 200% starting torque at 0HZ. Out frequency up to 3000HZ.

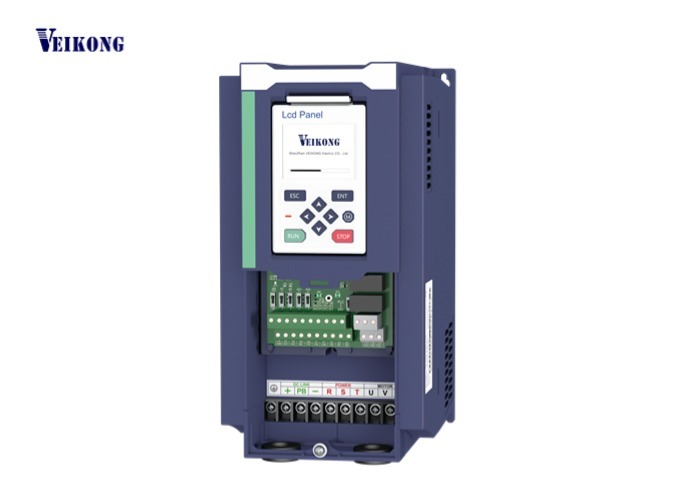

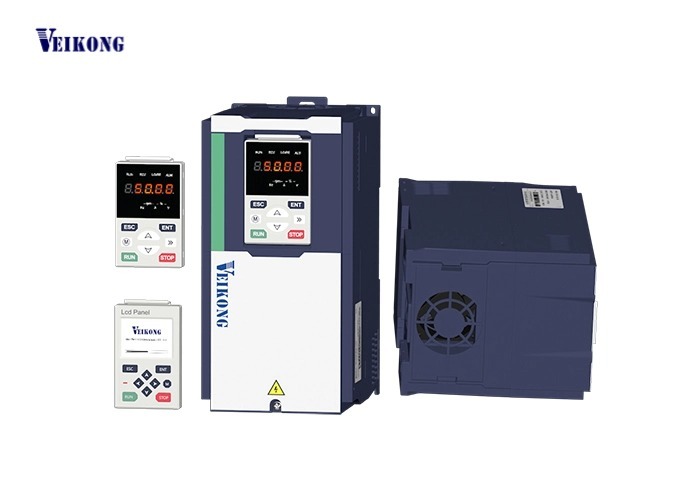

3, Support optional LCD keypad and dual display keypad. support PC tools. support modbus485, canopen, profinet communciation.
4, Support Asynchornous & Synchronous motor.
5, Support 2 PID loop for HVAC
6, Sleeping function and energy saving function as well as in built PLC programming
7, Special brake logic mechanism for crane and hoist, Magnetic flux brake gain
8, Support two group motor parameters which can realize two motor switching control

VEIKONG  hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 inverter

VFD530 technical data:

Item		Specifiation
Input	Inuput Voltage	1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V
	Allowed Voltage fluctuation range	-15%～10%
	Input frequency	50Hz / 60Hz,fluctuation less than 5%
Output	Output Voltage	3phase:0～input voltage
	Overload capacity	General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current
Control	Control mode	V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC)
	Operating mode	Speed control,Torque control(SVC and VC)
	Speed range	1:100 (V/f) 1:200( SVC) 1:1000 (VC)
	Speed control accuracy	±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)
	Speed response	5Hz(V/f) 20Hz(SVC) 50Hz(VC)
	frequency range	0.00～2000.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC)
	Input frequency resolution	Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1%
	Startup torque	150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC)
	Torque control accuracy	SVC:within 5Hz10%,above 5Hz5% VC:3.0%
	V/f curve	V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost
	Frequency giving ramp	Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
	DC bus voltage control	Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault; Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault
	Carrier frequency	1kHz～12kHz(Varies depending on the type)
	Startup method	Direct start (can be superimposed DC brake); speed tracking start
	Stop method	Deceleration stop (can be superimposed DC braking); free to stop
	Maincontrol function	Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function	Keypad	LED Digital keyboard and LCD keypad(option)
	Communication	Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT)
	PG card	Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
	Input terminal	Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input
	Output terminal	standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals
Protection	Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment	Installation location	Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
	Ambient temperature	-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C ~ +60°C
Others	Installation	Wall-mounted, floor-controlled cabinet, transmural
	Protection level	IP20
	cooling method	Forced air cooling
EMC	CE ROHS	Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment

Product series instruction:

Model	Power capacity (KVA)	Input current (A)	Output current(A)		Adaptable Motor (KW)	SIZE	Brake Unit
			Heavy load	Light load
Three phase: 380-480V,50/60Hz
VFD530-R75GT4B	1.5	3.4	2.5	4.2	0.75	SIZE A	Internal
VFD530-1R5GT4B	3	5	4.2	5.6	1.5
VFD530-2R2GT4B	4	5.8	5.6	9.4	2.2
VFD530-4R0G/5R5PT4B	5.9	10.5	9.4	13.0	3.7
VFD530-5R5G/7R5PT4B	8.9	14.6	13.0	17.0	5.5	SIZE B
VFD530-7R5G/011PT4B	11	20.5	17.0	23.0	7.5
VFD530-011G/015PT4B	17	26.0	25.0	31.0	11	SIZE C	Internal
VFD530-015G/018PT4B	21	35.0	32.0	37.0	15
VFD530-018G/022PT4B	24	38.5	37.0	45.0	18.5	SIZE D
VFD530-022G/030PT4B	30	46.5	45.0	57.0	22
VFD530-030G/037PT4	40	62.0	60.0	75.0	30	SIZE E	option
VFD530-037G/045PT4	50	76.0	75.0	87.0	37
VFD530-045G/055PT4	60	92.0	90.0	110.0	45	SIZE F
VFD530-055G/075PT4	75	113.0	110.0	135.0	55
VFD530-075G/090PT4	104	157.0	152.0	165.0	75	SIZE G
VFD530-090G/110PT4	112	170.0	176.0	210.0	90		External
VFD530-110G/132PT4	145	220.0	210.0	253.0	110	SIZE H
VFD530-132G/160PT4	170	258.0	253.0	304.0	132	SIZE I
VFD530-160G/185PT4	210	320.0	304.0	360.0	160
VFD530-185G/200PT4	245	372.0	360.0	380.0	185	SIZE J
VFD530-200G/220PT4	250	380.0	380.0	426.0	200
VFD530-220G/250PT4	280	425.0	426.0	465.0	220	SIZE K
VFD530-250G/280PT4	315	479.0	465.0	520.0	250
VFD530-280G/315PT4	350	532.0	520.0	585.0	280	SIZE L
VFD530-315G/355PT4	385	585.0	585.0	650.0	315
VFD530-355G/400PT4	420	638.0	650.0	725.0	355	SIZE M
VFD530-400G/450PT4	470	714.0	725.0	820.0	400
VFD530-450G/500PT4	530	800.0	820.0	/	450	SIZE N
VFD530-500G/560PT4	580	880.0	900.0	/	500
VFD530-560G/630PT4	630	950.0	980.0	/	560	SIZE O
VFD530-630GT4	710	1080	1120.	/	630	SIZE O
VFD530-710GT4	790	1200	1260	/	710	SIZE O
Single phase :220V ,50/60HZ
VFD530-R40GS2	1.3	6.0	3.2	5.6	0.4	SIZE A	Inbuilt
VFD530-R75GS2	2.4	11.0	5.6	8.0	0.75	SIZE A
VFD530-1R5GS2	3.5	15.0	8.0	10.6	1.5	SIZE A
VFD530-2R2GS2	5.5	25.0	10.6	14.0	2.2	SIZE A
VFD530-4R0GS2	7.7	35.0	17.0	23.0	4.0	SIZE B
VFD530-5R5GS2	8.9	53.0	25.0	31.0	5.5	SIZE C
VFD530-7R5GS2	11	67.0	32.0	37.0	7.5	SIZE C
